Renault Climber: dimensions

Length, height, width... Discover the dimensions of Renault CLIMBER in detail.

Dimensions (mm)

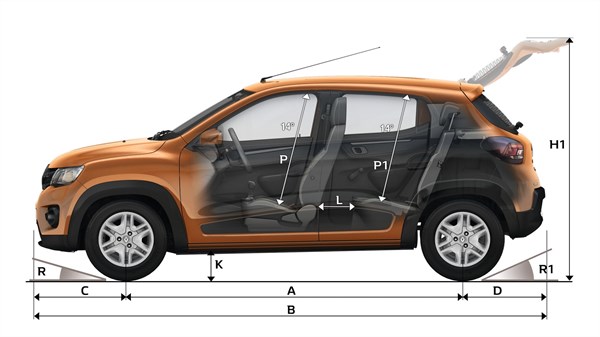

BOverall length3680
CFront overhang652
DRear overhang604

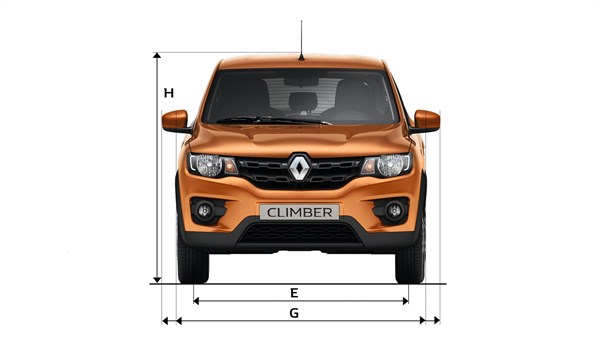

EFront track1385
GOverall width with/without mirrors1586/1752
HHeight of the vehicle1474
KGround clearance180
LKnee radius117
PHeight of front seats roof lining898
P1Height under rear roof lining846
RExit angle in degrees (unladen weight)25°
R1Rear bumpers angle in degrees (unladen weight)42°
H1Overall unladen height with tailgate open1888

Dimensions (mm)

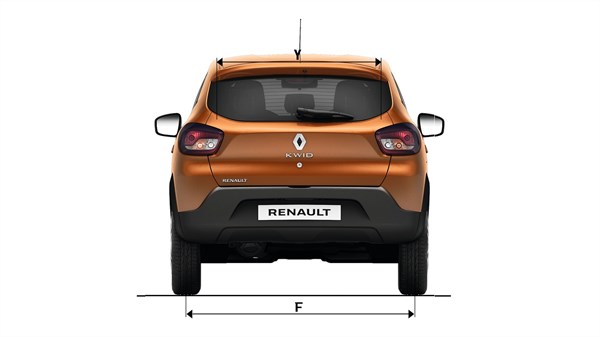

FRear track1365

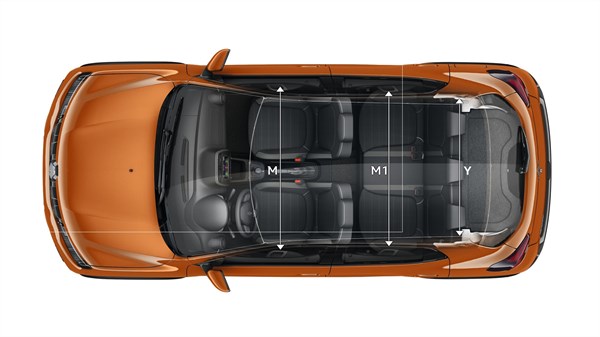

MWidth at elbow in front1295
M1Width at elbow in rear1265
YInside width between wheel arches926

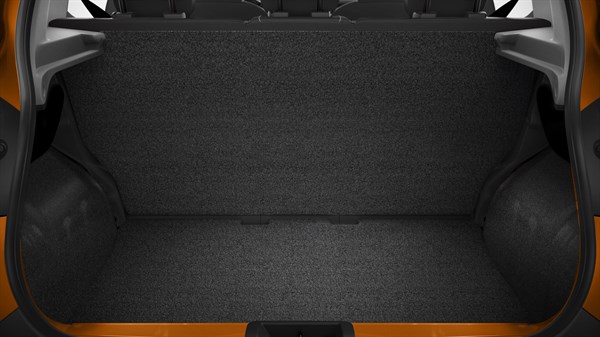

Boot volumes (L)
Announced trunk volume290
Cabin volume1100
